JINKAI CRIMPING SLEEVES 50PK
$9.99 – $11.99
50 Pack of Jinkai Premium Aluminum Crimps

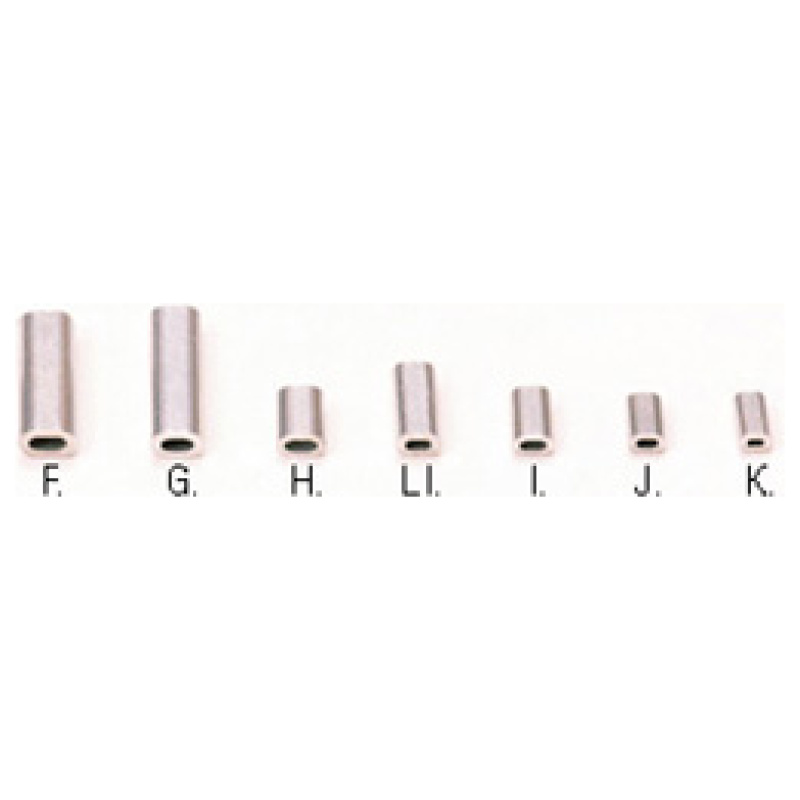

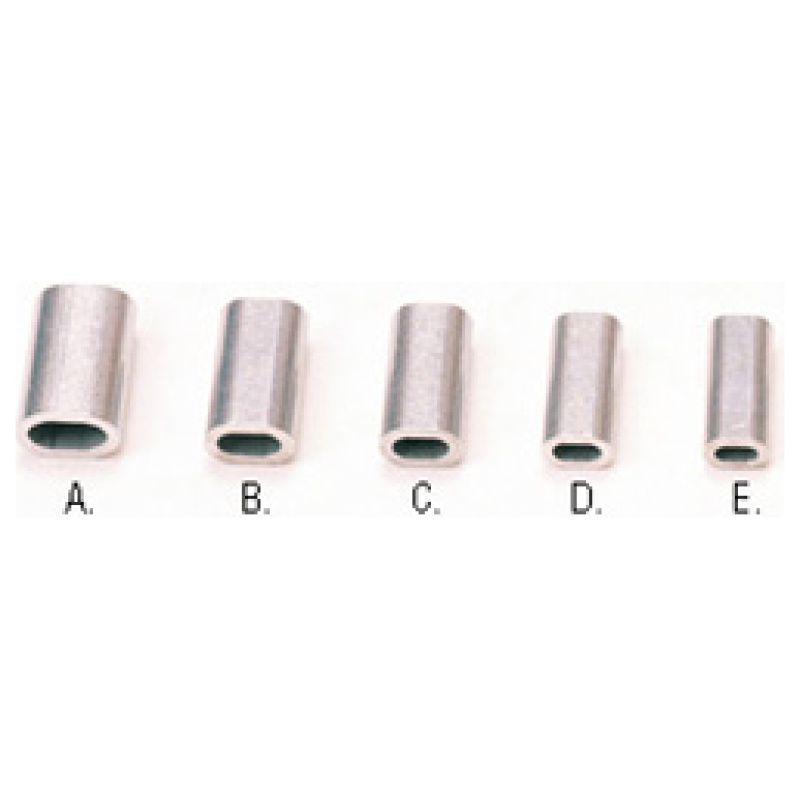

Jinkai Crimping Sleeves 50pk
Jinkai Sleeves are made from a special aluminum alloy that is easy to crimp and resists electro-corrosion in saltwater. The soft alloy metal and special oval shape work in conjunction to provide a permanent crimped connection without compromising line strength. A must when maximum strength is required
Sleeve/Line Coordination Chart
Size JINKAI Line Line Diameter 50/pkg.
Size JINKAI Line Line Diameter 50/pkg.
B 700 lb. test 2.65mm B-50
C 600 lb. test 2.25mm C-50
D 500 lb. test 2.00mm D-50
E 400 lb. test 1.81mm E-50
F + SF 300 lb. test 1.56mm F-50 or SF-50
C 600 lb. test 2.25mm C-50
D 500 lb. test 2.00mm D-50
E 400 lb. test 1.81mm E-50
F + SF 300 lb. test 1.56mm F-50 or SF-50
G + SG 175-250 lb test 1.28-1.47mm G-50 or SG-50
H 175-250 lb. test 1.28-1.47mm H-50
LI 120-150 lb. test 1.04-1.17mm LI-50
I 120-150 lb. test 1.04-1.17mm I-50
J 60-100 lb. test 0.74-1.00mm J-50
K 50 lb. test & smaller 0.62mm & smaller K-50
H 175-250 lb. test 1.28-1.47mm H-50
LI 120-150 lb. test 1.04-1.17mm LI-50
I 120-150 lb. test 1.04-1.17mm I-50
J 60-100 lb. test 0.74-1.00mm J-50
K 50 lb. test & smaller 0.62mm & smaller K-50
| Model | A-920, B-700, C-600, D-500, E-400, F-300, SF-300 (Short F), G-175-250, SG-175-250 (Short G), H-175-250S, LI-120-150, I-120-150S, J-60-100, K-50 |
|---|
